美国旧金山，January 31, 2018 — 在旧金山2019年西部光电技术展览会（SPIE Photonics West 2019）上，世界领先的纳米电子和数字技术研究与创新中心imec展示了拉曼光谱的片上解决方案（基于新取得的专利概念）。该解决方案提供高光通量和高光谱分辨率，可为经济实惠的高端手持式拉曼光谱仪铺平道路，从而开辟许多新的应用领域。Imec邀请与技术合作伙伴和IDM展开合作，将该技术进一步发展为商业应用。

Raman spectroscopy is a powerful technique, most often used to determine chemical and material composition. Application areas include the medical, food, even space industries. Because of the inherent nature of the technique, existing devices are rather bulky (tabletop) and have a price range of a few hundred thousand dollars/euros. Handheld solutions exist, but for the moment fail to reach the desired performance for high-end applications, largely because of the limited scaling capacity of conventional dispersive Raman spectrometry whereby scattered light is focused on a slit. Scaling while maintaining high spectral resolution (< 1nm) means reducing the size of the slit which immediately limits the optical throughput.

Thanks to a new concept, for which a patent is pending, imec has now been able to overcome this performance barrier. By massive parallelization of waveguide interferometers integrated monolithically on top of a CMOS image sensor, both high optical throughput and high spectral resolution can be reached in a miniaturized device. This novel system is built in imec’s SiN biophotonics platform which guarantees robustness and compatibility with high-volume manufacturing. Part of the work was performed under the EU-funded IoSense program.

Pol Van Dorpe, principal member of the technical staff at imec: “We are very pleased to have achieved this milestone which can mean a breakthrough for the general applicability of Raman spectroscopy. One could even think about smartphone integration. With the right partners we see many application opportunities in areas like food analysis, melanoma detection, or skin hydration. In the medical domain, we see opportunities for in-line measurements during surgery or endoscopy. And for space exploration, the ability to perform material analysis with a compact system is of tremendous value.”

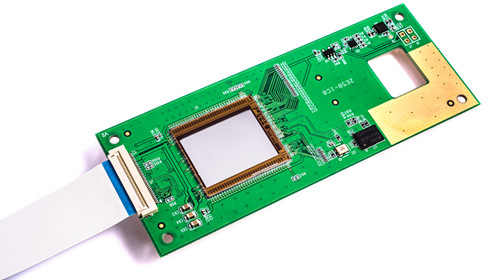

Imec’s On-chip RAMAN spectroscopy solution
